Exterior Grade Plywood: Uses, Grades, Waterproofing, and Buying Guide

Exterior grade plywood is plywood made with an exterior-rated glue bond so it can handle moisture better than interior panels. It still needs sealing, drainage, and the right grade if you expect it to survive outside.

What Exterior Grade Plywood Means

Exterior grade plywood refers mainly to the glue bond between wood veneers, not a magic waterproof coating on the whole sheet. The panel is built from cross-laminated layers, so the grain direction alternates and the sheet stays flatter than solid wood through normal seasonal movement.

Glue Bond vs Wood

The glue bond in exterior plywood resists moisture better than interior glue, often using phenolic or similar exterior-rated resins. The wood veneers can still soak up rain, and a raw cut edge feels rough and thirsty under your fingers because it exposes open end grain and glue lines.

If you want a deeper look at resin-bonded panels, this guide to phenolic plywood explains why adhesive type matters so much in wet or humid work.

Water-Resistant, Not Waterproof

Water-resistant plywood can survive wetting better than interior plywood, but it isn’t fully waterproof by itself. Rain enters fastest through cut edges, screw holes, surface checks, panel gaps, and any spot where paint has cracked or lifted.

A common beginner mistake is treating an exterior plywood sheet like plastic lumber. The better workaround is to seal faces, edges, drilled holes, and fresh cuts before assembly, then design the project so water sheds off instead of sitting on the panel.

Common Sizes and Thicknesses

Most exterior plywood comes as a 4 ft x 8 ft sheet, with project panels available in smaller cuts. Nominal thickness can differ from actual thickness, so a sheet sold as 3/4 inch often measures 23/32 inch, and 1/2 inch often measures 15/32 inch.

Nominal Thickness	Common Actual Thickness	Typical Outdoor Use	Approx. 4×8 Weight
1/4 inch	Varies by panel	Backers, signs, light covers	20–25 lb
3/8 inch	Varies by panel	Light sheathing, utility panels	30–40 lb
1/2 inch	15/32 inch	Wall panels, shed siding, soffits	40–50 lb
5/8 inch	19/32 inch or close	Roof decks, stronger sheathing	50–60 lb
3/4 inch	23/32 inch	Shed floors, benches, cabinets	60–75 lb

Lifespan and Failure Risks

Outdoor lifespan depends on water control more than the label on the rack. Protected plywood behind roofing or siding can last decades, while unsealed plywood left in sun and rain may show swelling, face checking, or dark mildew stains within months to a few years.

Decay risk climbs when wood stays above about 20% moisture content for long periods, a threshold discussed in the USDA Wood Handbook. In practice, the first warning signs are raised edges, a sour wet-wood smell, screw heads sitting proud, and soft fibers near seams.

Ratings, Grades, and Stamps

Plywood ratings tell you how the panel handles moisture, structure, and appearance. The face grade, span rating, thickness, product standard, and bond classification are separate details, so the stamp matters more than the shelf tag.

Exterior vs Exposure 1

Exterior panels are made for repeated moisture exposure when the project calls for that rating. Exposure 1 plywood can handle normal construction delays, such as a roof deck getting rained on before shingles go down, but it isn’t meant to stay exposed season after season.

APA explains bond classifications and rated panel markings in its APA trademark guide. I still check the stamp on every panel stack because mixed pallets happen, and the wrong bond rating can hide under nearly identical-looking faces.

Interior Plywood Limits

Interior plywood belongs in dry spaces. Use it outdoors and the glue lines can fail, the face can bubble, and the sheet can curl like a potato chip after a few wet-dry cycles.

Beginners sometimes use cabinet or craft plywood outside because the face looks smooth. That clean face won’t save the panel if the core and glue weren’t made for moisture, so save indoor panels for protected work or choose a true exterior-rated sheet.

A, B, C, D Faces

Face grades describe appearance and surface defects, not the outdoor rating by themselves. A-grade faces are smooth and paintable, B-grade faces allow more repairs, C-grade faces allow knots and patches, and D-grade faces can have larger open defects.

For visible work, pay for a better face because sanding rough utility plywood eats time and still leaves football patches, knot shadows, and dips that telegraph through paint. For a fuller breakdown, see this plywood grades guide.

ACX, BCX, CCX, CDX

ACX plywood has an A face, C back, and exterior-rated bond, making it a better pick for painted outdoor panels. BCX gives a good cost-to-appearance balance, CCX works for utility jobs, and CDX fits covered construction sheathing more than exposed finish work.

The “X” gets misread as waterproof, which causes expensive failures. Treat it as a clue to check the panel stamp, not as permission to leave raw plywood in the weather.

Reading APA Stamps

APA stamps can show the panel grade, thickness, span rating, mill number, product standard, and bond classification such as Exterior or Exposure 1. Look for PS 1 or PS 2, the rated sheathing mark when structural use matters, and the span rating if the panel supports a roof, wall, or floor.

Don’t rely on color, smell, or surface smoothness to judge exterior plywood grades. A damp pressure-treated panel feels cool and heavy, while a dry exterior panel feels lighter, but neither touch test tells you the product standard or span rating.

Exterior Plywood Comparisons

Exterior plywood sits between basic construction sheathing and premium wet-service panels. The best choice depends on whether you need appearance, decay resistance, void-free cores, structural rating, or a low-cost panel that will be covered soon.

CDX vs Exterior Plywood

CDX plywood describes C and D veneer faces with an exterior-type or exposure-rated bond, but it isn’t the same as a finished exterior panel. It works well under shingles, siding, or housewrap, yet it looks rough and fails faster when used as an exposed outdoor surface.

The pro workaround is simple: use CDX where it will be covered, then step up to ACX, BCX, MDO, or marine plywood where people will see it or where splash exposure is frequent.

Marine vs Exterior Plywood

Marine plywood uses waterproof adhesive like exterior plywood, but it usually has higher-quality veneers and fewer core voids. Those voids matter because hidden air pockets can trap water, crush under fasteners, or create weak spots in curved boat parts.

Marine plywood often costs 2x to 4x more than basic construction plywood, with many 4 ft x 8 ft sheets running about $100–$250+ and specialty okoume costing more. Use it for boats, splash zones, wet cabinetry, and places where a failure would cost more than the panel upgrade; this marine plywood guide covers the grade in more detail.

Pressure-Treated vs Exterior

Pressure-treated plywood adds preservative protection against decay, fungi, and insects, while standard exterior grade plywood mainly addresses the glue bond. For damp crawlspaces, trailer decks, low shed floors, and near-ground work, treated plywood often beats untreated exterior plywood.

Use compatible fasteners because preservative chemicals can corrode plain steel. The AWPA use category system explains how treated wood gets matched to exposure risks, including ground contact and above-ground use.

OSB, MDO, Composite Alternatives

OSB sheathing often costs less than plywood and works well when covered quickly, but its edges can swell badly after repeated wetting. MDO plywood has a resin-treated overlay that paints smoothly, so it’s a strong option for outdoor signs, painted panels, and concrete forms.

Composite, PVC, and cement-based panels resist moisture better in some trim or tile jobs, but they don’t replace structural plywood in every build. For painted sign work, compare exterior plywood against MDO plywood before buying.

Best and Worst Outdoor Uses

Exterior plywood works best outdoors when it’s part of a protected system, such as a roof, wall, painted panel, or covered structure. It performs worst where water sits, soil touches the panel, or the finish gets ignored.

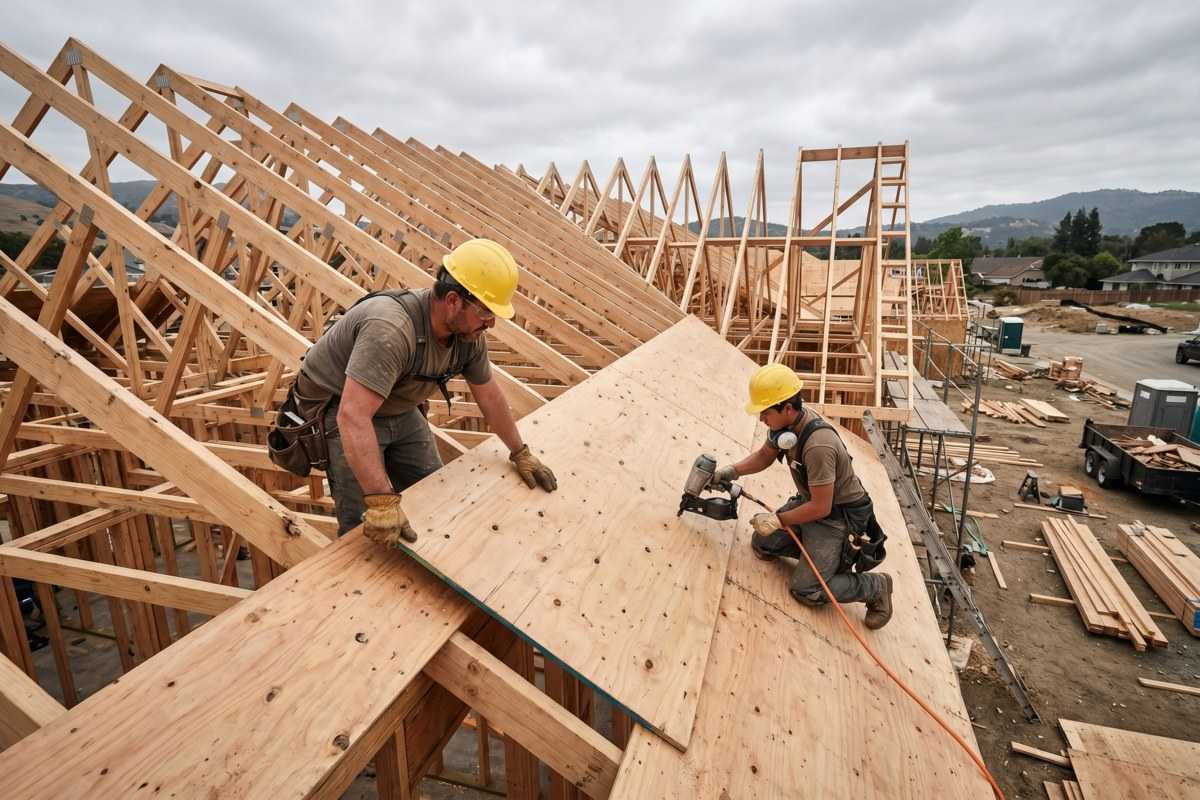

Roof and Wall Sheathing

Roof sheathing and wall sheathing are common uses for exterior-rated or Exposure 1 structural panels. Roof decks may use 3/8 inch, 7/16 inch, 15/32 inch, 1/2 inch, or 5/8 inch panels depending on span, loading, and local code requirements.

The mistake is leaving sheathing uncovered too long. If rain soaks a roof deck, let it dry before underlayment, replace swollen panels, and never trap wet plywood under roofing where the damp wood smell has no path out.

Sheds, Soffits, Signs

Shed walls, soffits, fascia backing, and outdoor signs can use exterior plywood when you prime, paint, and seal the edges. Soffits stay partly sheltered, but wind-driven rain still reaches seams and nail holes.

For shed floors close to damp soil, 3/4 inch pressure-treated plywood is often the safer choice than untreated exterior plywood. For signs, MDO or sanded ACX saves finish time because the paint lays flatter and the brush doesn’t drag across open grain.

Outdoor Furniture

Outdoor furniture can be built from exterior plywood, but panel edges need extra care because benches and tables get bumped, washed, and left in sun. ACX, BCX, marine plywood, and MDO look better than CDX once paint or finish goes on.

The beginner trap is leaving a plywood tabletop flat with no slope or drip edge. Add a slight pitch, round sharp corners, seal all edges heavily, and choose hardware that won’t stain the finish with rust trails after the first storm.

For species and finish choices beyond panels, this guide to the best outdoor furniture wood helps compare plywood with solid wood options.

Boats and Docks

Boats and docks punish plywood with splash, vibration, sun, and trapped moisture. Standard exterior plywood may work for non-critical, fully sealed, above-water parts, but marine plywood is the safer pick for boat repair, wet lockers, and curved panels.

When sanding a marine panel, the surface feels denser and more consistent than utility plywood, with fewer sudden dips from hidden voids. That consistency matters when fiberglass cloth has to lie flat without bubbles or dry pockets.

Ground Contact Limits

Ground contact is a bad match for standard exterior plywood because soil holds moisture against the wood and feeds decay. Concrete can create the same problem when it wicks water into a panel edge.

Raise panels on skids, add a capillary break, or use pressure-treated plywood rated for the exposure. If a plywood edge looks dark, fuzzy, and stays cool to the touch long after the rest dries, water is trapped where it shouldn’t be.

Constant Water Exposure

Constant water beats ordinary exterior plywood. Repeated saturation can swell veneers, open checks, soften fastener holes, and invite rot even when the glue bond remains intact.

Use properly coated marine plywood, pressure-treated panels, fiberglass over epoxy, PVC, composites, or another wet-service material. A horizontal plywood shelf that holds a puddle will fail faster than a vertical panel made from the same sheet.

How to Choose Exterior Plywood

Choose exterior plywood by matching thickness, face grade, bond rating, and finish plan to the project. Price matters, but the cheapest panel often costs more once you add sanding, filler, extra primer, and early repairs.

Thickness by Project

Thickness selection starts with span and load. Use 1/4 inch for light covers, 1/2 inch for many wall panels, 5/8 inch for stronger roof or floor work, and 3/4 inch for shed floors, cabinets, benches, and surfaces that people step on or lean against.

Don’t overspend on thickness where framing provides full support, and don’t undersize panels where they bridge gaps. A too-thin sheet flexes underfoot with a dull creak, loosens fasteners, and cracks coatings around screw heads.

Face Grade by Finish

Visible finishes need better faces. Pick ACX for painted panels where appearance matters, BCX for a practical balance, CCX for utility use, and CDX only where roughness, knots, and patches will be covered.

Clear coatings expose every patch and football repair, so don’t expect construction plywood to look like furniture-grade material. If a smooth face matters indoors or under cover, compare with cabinet grade plywood before settling on a rough exterior panel.

Price Ranges

Exterior plywood price changes by thickness, face grade, species, treatment, rating, and local supply. Standard 4 ft x 8 ft sheathing often runs about $25–$60, sanded ACX or BCX often runs about $50–$120+, and marine plywood often runs about $100–$250+ per sheet.

Budget for coatings and fasteners, not just the panel. A gallon of primer, exterior paint, epoxy, stainless screws, and delivery can shift the real project cost more than moving from a C face to a B face.

Buying Checklist

Check the stamp before you load the cart. Store shelf labels can be vague, and two stacks marked “outdoor plywood” may have different bond classifications, face grades, and structural ratings.

• Confirm the panel says Exterior or has the rating your project needs.
• Check PS 1, PS 2, span rating, grade, and thickness where structural use matters.
• Pick ACX or BCX for visible painted work.
• Pick pressure-treated plywood for decay or insect risk near the ground.
• Pick marine plywood where voids, splash, or repair access matter.
• Reject panels with edge splits, bubbles, crushed corners, heavy warp, or visible delamination.
• Smell for musty storage damage and feel the edges for swelling before buying.

Product Examples

Product examples below lean marine because moisture-prone projects often need better cores and splash resistance than standard exterior plywood provides. Treat these as examples for damp areas, boats, cabinets, and coated outdoor builds, not as a reason to skip sealing.

Compare these panels if your project needs marine-grade construction or a smoother finish surface.

How to Seal Exterior Plywood

Seal exterior plywood by coating the faces, edges, cuts, and exposed penetrations before the panel spends time in weather. Edge sealing matters most because exposed veneer ends absorb water faster than factory faces.

Surface Preparation

Surface prep starts with dry plywood. Let damp sheets dry, sand rough fibers, remove dust, scrape off stickers, and fill large voids or checks that will hold water under paint.

Run your palm over the face after sanding; a ready panel feels smooth, not fuzzy or greasy. If the surface still feels slick from mill glaze, scuff it so primer can bite instead of peeling in sheets later.

Edge Sealing

Seal plywood edges with exterior primer, epoxy sealer, spar urethane, or a compatible exterior wood sealer. Recoat every fresh saw cut, router pass, drilled hole, and notch before installation hides it.

A good field trick is to pre-seal full sheets, cut the parts, then keep a small brush and sealer at the saw. The wet edge darkens fast when it drinks sealer, which shows why raw edges fail first outdoors.

Paint and Primer

Exterior primer gives paint a stable base and blocks uneven absorption across veneers, knots, and patches. Paint all sides where you can, with extra coats on edges and end grain.

Paint protects better from UV than most clear finishes because pigment shields the wood fibers. Beginners often paint the front face only, then wonder why the sheet cups; balance the coating on both sides whenever practical.

Epoxy and Fiberglass

Epoxy encapsulation offers stronger water resistance than paint for splash-prone panels, boat parts, and horizontal surfaces. Fiberglass cloth adds abrasion resistance and helps keep surface checks from opening under sun and rain.

Mix epoxy carefully, watch pot life, and wear gloves because the resin smell hangs sharp in the air and the sticky film clings to skin. Coat edges first, then faces, so dry veneer ends don’t steal resin from the surface coat.

Stains and Clear Coats

Exterior stain can work on plywood, but it needs more frequent care than paint in sun and rain. Clear coats show the wood but give less UV protection, so spar urethane or marine varnish needs inspection and recoating before it cracks.

Clear finishes look best on better faces and marine panels. On low-grade exterior plywood, knots, patches, and glue-line shadows stay visible, so paint is usually the cleaner finish choice.

Installation and Maintenance Tips

Install exterior plywood so it can move, drain, dry, and hold fasteners without corrosion. Good detailing does more for service life than one extra coat of finish over a water-trapping design.

Expansion Gaps

Expansion gaps reduce buckling when panels swell from humidity or rain. Many sheathing layouts use about 1/8 inch between panels, but follow the panel maker, plans, or local code for structural assemblies.

Don’t jam sheets tight on a dry day and expect them to stay flat after a storm. Tight panels can ridge at seams, telegraph through siding, or push fasteners out as the wood expands.

Outdoor Fasteners

Outdoor fasteners should resist corrosion. Use stainless steel screws, hot-dipped galvanized nails, or exterior-rated coated screws, and verify compatibility with pressure-treated plywood.

Plain drywall screws are a bad habit outside because they rust, snap, and leave black stains under paint. Pre-drill near edges, use the right screw length, and avoid overdriving fasteners into soft wet plywood.

Drainage and Ventilation

Drainage and airflow keep exterior plywood from staying above safe moisture levels. Use flashing, slope horizontal surfaces, lift panels above standing water, and leave a drying path behind cladding where the assembly calls for one.

The worst failures often happen in hidden pockets: plywood sandwiched against damp masonry, blocked shed floor vents, or a sign panel sealed against a post with no spacer. Add washers, battens, or furring strips where airflow needs a path.

Cut Edges and Holes

Cut edges and holes need the same coating plan as the factory faces. Seal notches for pipes, screw holes in exposed panels, routed edges, and the underside of any panel that could wick splash from below.

Keep a small artist brush in the tool bag for touch-ups. It reaches bolt holes and narrow kerfs better than a roller, and it stops the “I’ll seal it later” mistake that gets forgotten once the panel is installed.

Annual Inspection

Annual inspection should look for peeling paint, raised grain, soft corners, swollen edges, open seams, mold, rust stains, and delamination. Recoat before cracks turn into water channels.

Press a screwdriver lightly near suspect edges; sound plywood resists, while decayed fibers feel punky and crush. Catching that small soft spot early can save a whole shed wall or sign face.

Practical Notes From Real-World Use

Practical field notes are simple: water always finds the edge, cheap fasteners always reveal themselves, and horizontal plywood needs more protection than vertical plywood. If a build must survive outdoors, plan the coating, slope, flashing, and fasteners before you cut the first sheet.

Stack panels flat, keep them off wet concrete, and let them acclimate before final fastening. A warped sheet fights you at every screw, squeaks under pressure, and leaves gaps that no bead of caulk will fix for long.

Common Mistakes to Avoid

Most plywood failures start with wrong assumptions, not bad luck. Exterior grade plywood lasts longer when you treat it as weather-resistant wood that still needs protection from water, sun, soil, and corrosion.

Assuming Waterproof Performance

Exterior isn’t waterproof in the way beginners often think. The glue can resist moisture while the wood face swells, checks, grows mold, or rots.

The fix is to seal the sheet and design drainage into the project. If water beads at first but soaks in after a week, the coating needs maintenance or a tougher system.

Exposing CDX Uncovered

CDX uncovered is a short-life finish surface. It belongs under roofing, siding, housewrap, flooring, or another protective layer, not as a raw outdoor wall or tabletop.

Use CDX for covered sheathing and upgrade to ACX, BCX, MDO, marine plywood, or treated plywood for exposed work. That swap costs less than replacing a curled, gray, splintered panel after one wet season.

Leaving Edges Unsealed

Unsealed edges are the fastest path to swelling and delamination. Factory faces shed water better than saw-cut veneer ends, so every cut needs coating before it faces weather.

Brush sealer into edges until absorption slows, then add another coat after drying. On high-risk edges, epoxy or a buildable primer beats one thin swipe of paint.

Using Wrong Fasteners

Wrong fasteners create rust stains, loose panels, and weak connections. Plain steel screws and indoor nails don’t belong in wet exterior plywood work.

Use stainless steel, hot-dipped galvanized, or approved coated fasteners. With treated plywood, check the fastener label against the treatment type so corrosion doesn’t start behind the finish.

Sealing One Face

One-face sealing can make plywood move unevenly. The coated face sheds moisture, the raw face absorbs it, and the sheet can cup or twist as the sides expand at different rates.

Coat both faces and all edges when possible, especially on signs, cabinet doors, furniture parts, and panels exposed on both sides. Balanced sealing won’t stop all movement, but it reduces the stress that cracks finishes.

Ignoring Drainage

Poor drainage ruins good plywood. Standing water breaks coatings, feeds decay, and keeps fastener holes wet long after the rain stops.

Add slope, drip edges, spacers, flashing, and ventilation. If you can hear water slosh inside a joint or see a dark wet line that never dries, the design needs a drainage fix before another coat of paint.
