Quilted Maple Wood: Properties, Uses, Grades, and Buying Guide

Quilted maple wood is maple with a rippling, pillowed figure that appears three-dimensional as the light or viewing angle changes. It isn’t a separate species; premium quilt is most closely associated with Bigleaf maple, or Acer macrophyllum, from western North America.

What Is Quilted Maple Wood?

Quilted maple is highly figured maple timber with overlapping bubbles, scales, clouds, or soft waves. Its shifting light-and-dark pattern comes from changing fiber direction inside the wood, not from a printed surface or special coating.

Is It a Species?

No. “Quilted” describes a wood figure, much like curly, birdseye, or burl. Sellers sometimes shorten a listing to “quilted maple,” so ask for the botanical species if hardness, weight, movement, or structural performance affects the project.

Bigleaf Maple Identity

The strongest commercial quilt is linked to Bigleaf maple, Acer macrophyllum. Quilt can occur in other maples, but species-level data for Bigleaf maple shouldn’t be applied to an unidentified board. Our broader guide to maple tree types explains related species.

Native Geographic Range

Bigleaf maple is native to western North America, extending from British Columbia through Washington and Oregon into California. The Kew Plants of the World Online record provides its accepted botanical identity and native distribution.

Grain Versus Figure

Grain describes the direction and arrangement of wood fibers. Figure is the visible maple wood pattern created by those fibers, growth features, color, cutting angle, and reflected light. The terms overlap in casual use, but they aren’t interchangeable; see our guide to wood grain patterns.

What Causes Quilting?

The exact biological trigger for intense quilt remains unsettled. The safest explanation is an unusual, repeated change in fiber orientation formed while the tree grows. Genetics, local growth conditions, and mechanical stress may contribute, but no single cause explains every figured log.

Sawing Orientation

Quilt commonly appears strongest on a broad flatsawn face. Quartersawing the same log can expose a narrower or weaker pattern, while rotary-cut veneer may stretch the design into long waves. Sawyers inspect log ends and sample faces because one wrong opening cut can miss valuable figure.

How Chatoyance Works

Chatoyance is the optical movement produced when differently angled fibers reflect light back at different rates. Tilting a finished panel makes pale pillows turn dark while nearby areas brighten. A fingertip moving across a well-sanded face feels smooth, yet the pattern looks deeply corrugated.

Properties of Quilted Maple

The physical properties of quilted maple wood come mainly from its species and density. Quilting changes fiber direction and machining behavior, but it doesn’t create a separate hardness or strength class.

Species Property Reference

Confirmed Bigleaf maple averages about 34 lb/ft³ dried weight and 850 lbf Janka hardness. Published values also place bending strength near 10,700 psi, elastic modulus near 1.45 million psi, and crushing strength near 5,950 psi. These figures from The Wood Database are reference averages, not guarantees for an individual board.

Bigleaf maple property	Reference value	Practical meaning
Average dried weight	34 lb/ft³ (545 kg/m³)	Moderate weight for furniture and instrument caps
Janka hardness	850 lbf (3,780 N)	Dents more readily than hard maple
Radial shrinkage	3.7%	Movement across quartersawn width
Tangential shrinkage	7.1%	Greater movement across flatsawn width
Volumetric shrinkage	11.6%	Requires controlled drying and acclimation

Density, Strength, and Shrinkage

Bigleaf maple has a tangential-to-radial shrinkage ratio near 1.9, so wide flatsawn boards can cup as humidity changes. Actual movement varies with grain, drying history, and final moisture content. Dense figured areas can also resist tools differently from neighboring fibers.

Bigleaf Versus Hard Maple

Hard or sugar maple measures about 1,450 lbf Janka, compared with Bigleaf maple at roughly 850 lbf. That hardness difference matters for floors, worktops, and dent-prone edges. Learn where each material fits in our guides to maple wood and soft maple.

Color and Texture

Sapwood usually ranges from nearly white to pale cream, while heartwood may be golden or light reddish brown. Freshly sanded wood feels fine and silky. Oil-based coatings warm the color; waterborne finishes retain a cooler, paler appearance.

Figure-Related Grain Behavior

Quilt repeatedly sends fibers into and away from the surface. A cutter may meet favorable grain and then hit reversing grain within a few millimeters, producing fuzzy patches or deep tear-out. This behavior affects machining far more than the figure affects basic species hardness.

Quilted Maple Versus Other Figures

Quilted maple differs from curly, flame, birdseye, and spalted maple in pattern formation. Quilt has broad pillows or fish scales, while curl forms bands, birdseye forms small eyes, and spalting produces fungal color lines.

Maple Figure Comparison Table

Figure	Typical appearance	Common association	Main workshop concern
Quilted	Broad pillows, bubbles, or scales	Bigleaf maple	Severe reversing grain
Curly or tiger	Repeated cross-grain stripes	Several maple species	Tear-out across narrow bands
Flame or fiddleback	Tight, regular striped curl	Instrument-grade maple	Matching stripe direction
Birdseye	Small circular eyes	Hard maple	Local chip-out around eyes
Spalted	Dark zone lines and color shifts	Fungally affected maple	Soft or decayed areas

Curly and Tiger Maple

Curly maple usually displays narrow waves crossing the main grain. Tiger maple is a marketplace name for bold striped curl. Quilt looks broader and more rounded, though sellers sometimes use these figure labels loosely.

Flame and Fiddleback Maple

Flame maple often refers to strong striped curl on guitars. Fiddleback describes tight, regular stripes historically prized for instrument backs. Neither term describes the broad, rounded quilt pattern.

Birdseye Maple

Birdseye maple contains small circular or elliptical marks that resemble eyes. It’s more closely associated with hard maple and has a dotted appearance rather than quilt’s continuous waves.

Spalted Maple

Spalted maple gets dark zone lines and color changes from fungal activity. A board may carry both spalt and quilt, but advanced decay can leave soft, crumbly fibers unsuitable for thin structural parts.

Identifying and Grading Quilted Maple

Identify genuine quilt by looking for a moving pillowed figure that remains visible in unfinished wood. Grade it by coverage, depth, consistency, defects, matching quality, and usable area rather than trusting an A-based label.

Genuine Quilt Characteristics

Natural quilt shifts from light to dark as the board tilts, and the pattern follows the wood rather than sitting above it. Printed film, photographic veneer, embossed laminate, and painted figuring may imitate one viewing angle but lack convincing optical movement.

Quilt Pattern Photo Examples

This guitar shows how a finish makes highly figured maple appear deeper around curves and reflected highlights. Blue quilted maple, black sand-back schedules, and amber clear coats can produce different aesthetics from the same pale base wood. For useful picture examples, compare dry, wetted, and finished views rather than one studio image.

Figure Coverage and Depth

Coverage measures how much of the face carries visible quilt. Depth describes the strength of its light movement. A deeply figured center with plain edges may suit a narrow guitar top but yield poorly for a wide desk panel.

Defects and Usable Yield

Checks, knots, bark pockets, taper, mineral streaks, and figure fade reduce usable yield. Chalk the final component outline on the seller’s photograph before buying. Add trimming room for jointing, seam alignment, and edge breakout.

Seller-Defined Grades

Labels such as A, AAA, 4A, and 5A have no universal standard. One dealer’s 5A can resemble another dealer’s 3A. Compare exact-piece images, wet-look video, dimensions, defects, and return terms before comparing grade names.

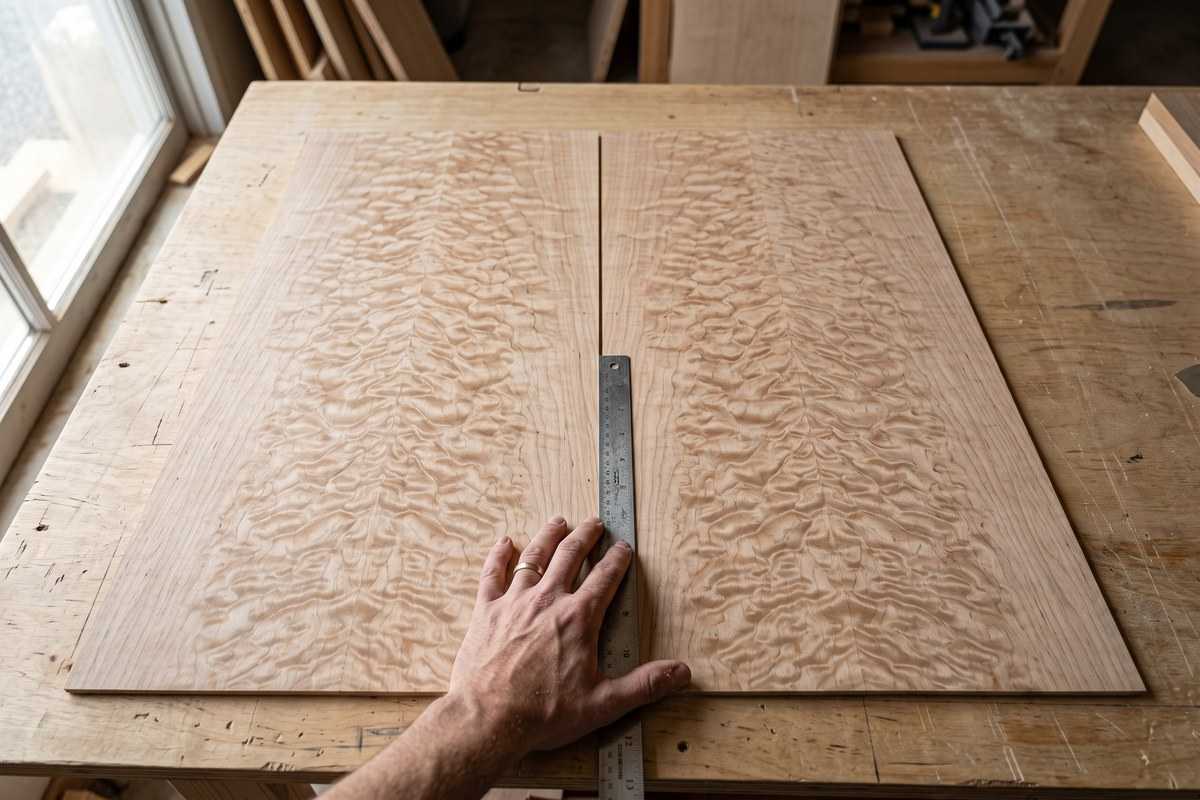

Bookmatch and Slip Match

A bookmatch opens consecutive faces like book pages, creating mirrored figure around a seam. A slip match places consecutive leaves in the same orientation. Bookmatching gives symmetry; slip matching gives more consistent light reflection across a wide panel.

Four-Way Matching

Four-way matching arranges four consecutive pieces around two intersecting seams. The result can resemble a flower or expanding wave. Tiny seam errors become obvious at the center intersection, so trim all mating edges with the same jig or straightedge setup.

Questions for Sellers

Practical notes from real-world use: strong figure can distract buyers from poor dimensions and hidden damage. Ask these questions before committing:

• What maple species is this?
• Is it solid wood, raw veneer, backed veneer, or decorative laminate?
• Does the photograph show the exact piece?
• What are the finished dimensions and measured moisture content?
• Was water, alcohol, mineral spirits, dye, or finish applied for the image?
• Are the sheets sequentially sliced and matched?
• Where are the checks, repairs, knots, and bark inclusions?
• How much usable material remains after edge trimming?

Uses and Material Formats

Quilted maple is used where its decorative figure remains visible: guitar tops, furniture panels, cabinet fronts, desks, boxes, inlays, and turned work. Veneer provides broad coverage at lower material cost, while solid stock permits carving and edge shaping.

Guitar Tops and Veneers

A guitar material listing may describe a paper-thin decorative veneer, a drop-top pair, a thicker body cap, or a carved-top billet. Those formats aren’t interchangeable. Mark the centerline and allow at least enough perimeter waste for body shaping, pickup routes, and seam adjustment.

Figure Versus Guitar Tone

A higher visual grade doesn’t guarantee better guitar tone. In an electric guitar, pickups, hardware, neck joint, construction, material thickness, density, and the underlying body have more direct effects than whether the quilt receives a 3A or 5A label.

Furniture and Cabinetry

Furniture makers often reserve quilt for doors, drawer fronts, show rails, and featured surfaces. The figure flashes most strongly under side light; across curved furniture it appears to roll as a person walks past. Using plain maple internally keeps material costs controlled.

Desks and Decorative Panels

A maple laminate top or quilted desk panel works best over a stable core. Wide solid boards can move seasonally and develop uneven seams. Veneer lets a maker create a continuous figured surface without assembling expensive, thick boards.

Boxes, Inlays, and Turning

Small pieces suit jewelry boxes, knife scales, pens, trays, marquetry, and decorative inserts. Turning can reveal surprising bands beneath the surface, but figure orientation may change as the diameter falls. Leave extra thickness and inspect turning blanks for hidden checks before mounting.

Solid Wood Versus Veneer

Choose solid quilted maple for carved edges, deep shaping, or exposed end grain. Choose veneer for wide panels, light construction, and efficient use of rare figure. Beginners often sand through raw veneer at corners; apply minimal pressure and stop as soon as scratches disappear.

Working and Finishing Quilted Maple

Quilted maple needs sharp tools, shallow cuts, controlled sanding, and a tested finish schedule. Its reversing fibers can tear under a planer, absorb dye unevenly, or split along thin veneer edges.

Preventing Planer Tear-Out

Use fresh knives or a helical cutterhead and take the lightest practical pass. Feed direction alone won’t solve grain that reverses repeatedly. When the planer begins making a dry rattling sound or leaves fuzzy craters, stop and switch to a card scraper, drum sander, or finely set plane.

Routing and Shaping

Use sharp spiral bits, shallow passes, and backed-up edges. Leave a small cleanup margin around templates. Controlled climb cuts may reduce breakout in isolated areas, but they can pull the router forward and cause kickback; beginners should use a safer multi-pass approach.

Sanding Figured Wood

Move progressively through the grits and inspect under low side lighting. Many film finishes work well over a surface sanded to 180–220 grit. Going too fine can burnish maple and reduce dye absorption, while skipped grits leave looping scratches that become obvious after clear coating.

Clear Finish Systems

Dewaxed shellac adds depth and works as a barrier coat. Lacquer builds quickly, waterborne polyurethane keeps the wood pale, and oil-modified varnish adds amber warmth. Test the coating because color shift can turn cream maple honey-gold.

Dye and Sand-Back

Apply dye, let it dry, then sand the high surface back so differently oriented fibers retain more color. Follow with a lighter dye or clear coat. The wet fibers feel slightly bristled after water dye, so pre-raise the grain and test on a same-board offcut.

Blotching and Muddy Figure

Heavy pigment stain can lodge in reversing grain and hide chatoyance beneath a flat brown cast. A washcoat reduces blotching but also limits color penetration. Build sample panels and view them from several angles before applying a dark finish to the project.

Veneer Substrates and Balance

MDF, quality plywood, and balanced engineered panels provide stable veneer substrates. Applying decorative veneer to one face can pull a panel into a curve. Add a balancing veneer to the reverse, particularly on large cabinet doors and desktops. See our guide to maple plywood for core options.

Adhesives and Pressing

Veneer PVA, cold-press glue, and rigid-setting urea-based systems can work when matched to the panel size and press method. Spread a continuous film and apply even pressure. Dry islands feel hollow when tapped and may later form visible bubbles.

Moisture and Acclimation

Acclimate lumber, veneer, and substrates in the same shop before assembly. Interior furniture lumber is often worked near 6–8% moisture content, but the right target depends on local equilibrium conditions. Rapid humidity change can curl veneer, open seams, check billets, or cup long boards.

Pricing and Buying Quilted Maple

Quilted maple costs more because strong figure is uncommon, recovery is low, drying carries risk, and matched material requires extra handling. Compare delivered usable cost, not a headline price per sheet, set, or board foot.

Why Quilt Costs More

A log may yield only a limited area with deep, continuous quilt. Checks, knots, taper, drying degrade, and poor cutting orientation reduce recovery further. Wide defect-free pieces earn a premium because instrument and furniture makers compete for the same rare figured timber.

Pricing Units and Formats

Solid lumber may sell per board foot, board, slab, or billet. Veneer may sell by sheet, square foot, flitch, or matched set. Guitar wood may be a drop top, body cap, headplate, veneer set, or carved billet. Normalize thickness and usable area before comparing offers.

Board-Foot Formula

Calculate board feet as thickness in inches × width in inches × length in feet ÷ 12. Using all inches, divide by 144. A 2-inch × 8-inch × 6-foot board contains 8 board feet, before trimming defects or plain edges.

Delivered Cost and Yield

Add the item price, shipping, tax, flattening loss, seam trimming, and expected waste. Then divide by the usable figured area or usable board feet. This calculation exposes a common mistake: a cheap irregular board can cost more per finished component than a clean premium blank.

Shipping and Storage Risks

Thin raw veneer can split, buckle, or curl in transit. Thick billets can develop end checks after a sudden humidity change. Photograph the package before opening, retain the wrapping, and store long sheets flat between clean cauls with gentle, even weight.

Choosing Project Material

Buy veneer for broad decorative coverage, a drop top for a flat guitar body, a thick billet for carving, and solid lumber for shaped edges or structural parts. Match the format to the final thickness instead of paying for wood that becomes shop waste.

Guitar-Project Veneer

A guitar veneer set should cover the complete body after centerline trimming and perimeter waste. Verify thickness, piece count, matching sequence, and glue method. This set illustrates a thin decorative guitar format, not a carved structural top.

Four-Way Matched Veneer

Four-way sets suit cabinet panels, marquetry, and instrument surfaces that need radial symmetry. Dry-assemble the pattern and mark each leaf before spreading glue. Precise trimming at the center prevents a dark gap or mismatched figure junction.

Small Raw Veneer Sheet

A compact unbacked sheet suits boxes, repairs, inlays, and small decorative panels. Check whether flattened dimensions still cover the work. Raw veneer has fragile edges and can split when cut with a dull knife, so use a sharp veneer saw or supported slicing cut.

Multi-Project Veneer Pack

A pack can supply coordinated accents across several drawers or boxes, but multiple sheets aren’t automatically sequential. Ask whether the leaves came from one flitch if matching matters. Sort the sheets under side light before assigning each project face.

Long Veneer Sheet

Long sheets suit furniture rails, instrument parts, cabinet components, and uninterrupted strips. Measure the usable length after excluding end splits and edge checks. Support the entire sheet during handling; lifting one end can start a crack across the reversing grain.

Responsible Sourcing and Workshop Safety

Responsible purchasing means verifying geographic origin, legal harvest, and certification claims. Safe workshop practice requires dust extraction, personal protection, ventilation, and attention to adhesive and finish safety data.

Origin and Traceability

Ask whether the Bigleaf maple came from managed forestry, private land, salvage recovery, or an urban tree program. “Reclaimed” and “salvaged” aren’t proof of legal or low-impact sourcing without traceable documentation showing origin and custody.

Forestry Certification

FSC and PEFC certification can support chain-of-custody claims when the seller’s certificate covers the product and remains valid. Check certificate codes through the FSC certificate search rather than relying only on a logo shown in a listing.

Conservation Status

Bigleaf maple isn’t commonly treated like a restricted tropical tonewood, but legal and conservation status can change. Check the species and trade route against the CITES species checklist and relevant state, provincial, or national forestry rules before international shipment.

Dust Exposure Controls

Maple dust may irritate the eyes, skin, nose, and lungs. Capture dust at the cutter, wear sealed eye protection and a properly fitted particulate respirator, and avoid sweeping fine dust into the air. Figured sanding produces fine airborne particles that remain suspended after machines stop.

• Connect planers, routers, and sanders to effective dust extraction.
• Wear hearing protection around routers and planers.
• Use a fitted particulate respirator rather than a loose nuisance mask.
• Vacuum surfaces instead of blowing dust with compressed air.
• Wash exposed skin if maple dust causes itching or redness.

Adhesive and Finish Safety

Read each product’s safety data sheet before mixing glue, dye, solvent, or finish. Provide suitable ventilation, control ignition sources, and store oily cloths in a listed metal container because drying oils can generate heat through spontaneous oxidation. Gloves must match the chemical rather than merely fit the hand.
