Curly Maple Explained: Species, Grades, Uses, and Buying Guide

Curly maple is maple wood whose wavy fibers create alternating light and dark bands; it’s a figure, not a separate tree species. This guide explains its species, properties, grading, milling, finishing, uses, and buying criteria.

What Is Curly Maple?

Curly maple wood has undulating fibers that reflect light at changing angles, making stripes appear to move as the board or viewer moves. Curl can occur in several hard and soft maple species, so the figure alone doesn’t reveal hardness, weight, or strength.

Figure, Not a Species

Curl is a figure found in sugar maple, red maple, bigleaf maple, and other Acer species. A seller calling a board “curly maple” has described its appearance but hasn’t fully identified its species or physical properties; our broader guide to types of maple trees explains the botanical distinctions.

Wavy Fibers and Chatoyance

Wavy fibers repeatedly angle toward and away from a cut surface. Each band handles light differently, creating chatoyance—the shifting, three-dimensional shimmer also seen in some gemstones—while the biological trigger for strong curl in a given tree remains difficult to predict.

Color, Grain, and Figure

Maple sapwood commonly ranges from creamy white to pale yellow, while heartwood can run reddish brown. Gray, olive, or brown mineral streaks may cross the pale surface, and amber finishes deepen those colors with age; see the related light-colored woods guide for comparison.

Figure Intensity and Orientation

Figure intensity depends on contrast, stripe spacing, coverage, and how the saw cut intersects the waves. Flatsawn stock can show broad rolling bands, while quartered stock often displays tighter, straighter stripes; neither orientation guarantees stronger curl.

Identifying Genuine Curly Maple

Tilt the board under a directional lamp. Genuine curl changes from light to dark as the angle changes and often remains visible along an edge, while printed laminate stays visually fixed; photographs can’t prove species, moisture, hardness, or whether figure passes through the full thickness.

Raw Versus Finished Appearance

Rough maple can look disappointingly plain because saw marks scatter light. A scraped surface wiped with mineral spirits reveals a close preview of the finished curl: the pale bands flash almost silver, then darken as the board turns, while the liquid leaves the surface cool and slick beneath a fingertip.

Curly Maple Species and Properties

Species determines performance, not the curl. Sugar maple is harder and heavier than red or bigleaf maple, while the softer species machine more easily and dent sooner.

Curly Sugar Maple

Curly sugar maple, Acer saccharum, averages about 1,450 lbf Janka hardness and 44 lb/ft³ when dried. Its crisp edges suit furniture, handles, and wear-prone parts, but dense reversing grain resists cutters and can scorch when a router bit pauses; the figures align with the species data compiled by The Wood Database.

Curly Red Maple

Curly red maple, Acer rubrum, averages roughly 950 lbf and 38 lb/ft³. It cuts with less resistance than sugar maple and works well for boxes, panels, turnings, and decorative instrument parts, though a dropped clamp can leave a visible crescent-shaped dent.

Curly Bigleaf Maple

Bigleaf maple, Acer macrophyllum, averages about 850 lbf and 34 lb/ft³. Western bigleaf stock produces dramatic curl and quilt, making it common in guitar sets and veneer, yet its relatively soft surface needs protection from bench grit and clamp jaws.

Hardness and Weight

Species	Approximate Janka hardness	Average dried weight	Practical fit
Sugar maple	1,450 lbf	44 lb/ft³	Wear surfaces, handles, crisp joinery
Red maple	950 lbf	38 lb/ft³	Furniture, boxes, panels, turnings
Bigleaf maple	850 lbf	34 lb/ft³	Instruments, veneer, decorative work

These are averages, not promises for an individual board. Moisture, growth rate, defects, and grain orientation affect performance, while curl adds no automatic hardness bonus; consult the wood hardness scale before substituting species.

Shrinkage and Stability

Sugar maple movement is greater than that of red or bigleaf maple by common species averages. Approximate radial/tangential shrinkage is 4.8%/9.9% for sugar maple, 3.7%/7.2% for red maple, and 3.7%/7.1% for bigleaf maple from green to oven dry.

Moisture and Acclimation

Measure moisture at several locations and compare the result with the building’s expected equilibrium moisture content. Indoor furniture stock often falls near 6–8%, but a humid coastal shop can require a higher target; the USDA Wood Handbook explains moisture-related movement in detail.

Acclimate before milling with stickers between boards and airflow around each face. Beginners often stack newly delivered stock flat without stickers, trapping moisture on one side; a better method is to rough-cut oversized parts, rest them, then check flatness before final milling.

Durability and Dent Resistance

Maple lacks strong natural decay resistance, so untreated curly maple performs poorly in wet or ground-contact settings. Hard maple handles abrasion better than soft maple, but no clear coating turns either species into an ideal exterior timber.

Gluing and Fastening

Fresh maple surfaces glue reliably when they’re clean and free from burnishing, oil, and sanding dust. Predrill near ends, particularly in sugar maple, and don’t place short screws into narrow figured parts without checking grain direction because local fiber waves can weaken a thin section.

Curly Maple Versus Other Figures

Curly maple has bands, while quilt, birdseye, and burl form different visual shapes. Tiger, flame, and fiddleback usually describe forms or trade names of curl rather than separate species.

Tiger and Flamed Maple

Tiger maple usually means bold, regular stripes, while flamed maple describes rolling bands that resemble flames. Dealers often use both names interchangeably with curl, so evaluate the board rather than relying on the label; our tiger maple guide shows the trade distinction.

Fiddleback Maple

Fiddleback maple has tight, closely spaced, consistent curl traditionally valued for violin-family backs, ribs, and necks. Strong stripes alone don’t make instrument-grade stock; quartering, density, seasoning, dimensions, and defect-free grain also matter.

Quilted Maple

Quilted maple forms broad, pillowy cells rather than narrow stripes and is closely associated with bigleaf maple. Both figures shimmer, but quilt looks like rounded clouds pressed beneath the surface; compare examples in the quilted maple reference.

Birdseye Maple

Birdseye maple contains many small eye-shaped marks instead of continuous bands. One board can carry more than one figure, but sellers should name its dominant pattern; photographs in the birdseye maple article make the difference clear.

Burl Maple

Burl maple has swirling, disordered growth with eyes, bark pockets, and possible voids. Curl remains more directional and predictable, while material from a tree burl may need resin filling or stabilization before machining.

Sawing Orientation Differences

Sawing angle changes the apparent geometry because the face intersects wavy fibers at a different plane. Quartersawn boards often show narrow, regular lines suited to instruments, while flatsawn boards can display broader arches for furniture panels; study the wood grain patterns before choosing stock.

Milling Curly Maple Without Tear-Out

Sharp cutters and light cuts limit tear-out in curly maple, but no feed direction stays favorable across every stripe. Reversing fibers may cut cleanly for an inch, then rip out in the next band, leaving a rough hollow that feels furry against the fingertips.

Inspecting and Marking Stock

Mark both faces, visible defects, final part locations, and suspected grain reversals before cutting. Reserve extra thickness for scraping, and arrange matching drawer fronts or box sides together so the curl flows consistently across adjacent parts.

Staged Milling

Mill in stages by rough-cutting parts, flattening them oversized, resting them for a day or longer, and then taking final passes. This sequence exposes movement before joinery begins and gives you room to remove shallow planer damage.

Machine Planing

Use fresh knives and the lightest practical depth of cut. If a conventional planer tears deep pits across alternating stripes, stop before the board drops below final thickness and switch to drum sanding, a router sled, or scraping.

Helical Cutterheads

Helical inserts take small shearing bites and often leave curly maple cleaner than straight knives. They still can’t prevent every defect: a dull or chipped insert leaves repeating ridges, so rotate damaged cutters and make a shallow final pass.

High-Angle Handplaning

A 50–60-degree effective cutting angle can reduce fiber lifting when paired with a sharp iron, tight mouth, and fine shaving. A low-angle plane isn’t automatically safer; a shallow bevel may slide under reversing fibers and lift a chip ahead of the edge.

Routing and Shaping

Route shallow passes with clean, sharp bits and support every exit edge. Maple burns quickly when feed speed stalls, producing a bitter toasted smell and a brown line that can run deeper than expected, so remove less material rather than lingering over one spot.

Climb-Cut Safety

Climb cutting carries a serious loss-of-control and kickback risk because the cutter pulls the work forward. Use it only in a controlled machine setup permitted by the manufacturer; beginners should favor tiny conventional passes, sacrificial backing, or hand tools.

Scraping and Sanding

A card scraper handles isolated reversals without forcing you to change planing direction every few inches. Start sanding at the finest grit that removes tool marks—often 150, then 180 and 220—and use raking light to find scratches before applying dye.

Practical notes from real-world use: stop planing at the first deep torn patch rather than trying several more passes. The common beginner response removes valuable thickness while making the crater deeper; a scraper raised to a fine hook usually produces pale, tissue-thin curls with far more control.

Finishing Curly Maple

Clear finishes reveal curl by improving light transmission, while dyes can increase contrast between alternating fiber directions. Pigment-heavy stains often collect in scratches and end grain, leaving figured maple dull or blotchy.

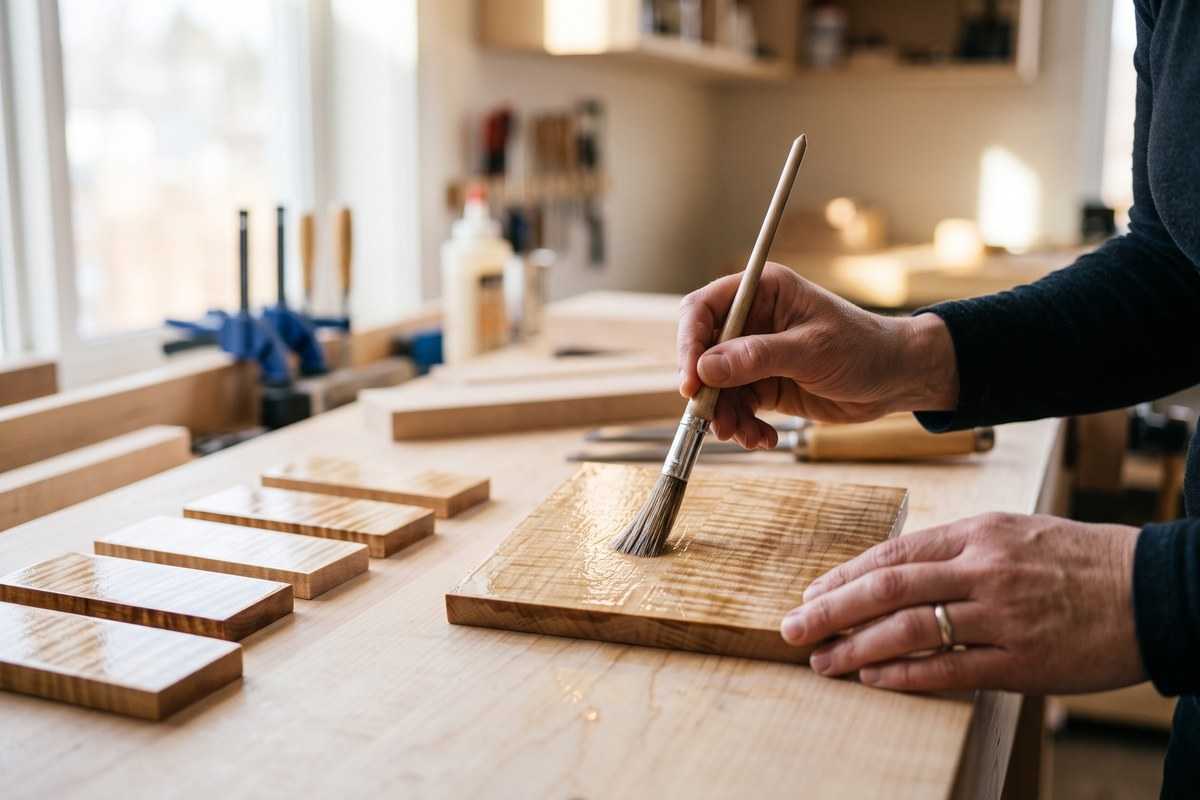

Preparing Finish Samples

Prepare matched offcuts from the project board, sand each one identically, and label the full schedule on its back. Test clear finish, dye, shellac, and the planned topcoat because species and sanding grit can change the result more than the product label suggests.

Clear Finish Options

Oil and varnish add amber warmth, dewaxed shellac adds optical depth and works as a useful sealer, and waterborne coatings retain a paler cast. Lacquer builds a clear film quickly but requires suitable ventilation, spray controls, and compatible seal coats.

Dye Versus Pigment Stain

Dye colors fibers with less muddy residue than many pigment stains, which settle into sanding scratches and absorb heavily on end grain. Beginners often mistake those dark scratches for stronger figure, so inspect the dry surface under side light before adding color.

Dye and Sand-Back Method

Apply dark dye, let it dry, sand back the surface color without cutting through corners, then add a lighter or warmer dye. Seal a successful sample with dewaxed shellac before the protective topcoat; uneven sanding can leave dark halos along edges and low spots.

Water Popping

Water popping raises compressed fibers and promotes more even water-dye penetration. Wipe the entire surface evenly, let it dry fully, and avoid spot wetting, which can create lap marks that appear only after color hits the wood.

Preserving Pale Color

Use a non-ambering waterborne system when creamy white maple is the goal. Test every sealer and topcoat because some “clear” products add a honey cast, and no transparent coating completely stops long-term color change from light and oxidation.

Viewing Angle Tests

Turn each sample 180 degrees under daylight, warm room light, and a side lamp. Curl that looks dark from one position should flash lighter from another; flat overhead illumination can make a dramatic sample appear quiet.

Oil-Rag Safety

Drying-oil rags can generate heat through oxidation and ignite. Follow the manufacturer’s disposal directions and local fire rules; lay rags flat in a safe outdoor location to cure or place them in an approved sealed metal container rather than leaving them crumpled on a bench.

Common Curly Maple Uses

Common curly maple uses include furniture, instruments, boxes, handles, veneer, turnings, and traditional gunstocks. The best stock choice balances visual figure with species hardness, grain direction, dimensions, moisture, and the part’s structural demands.

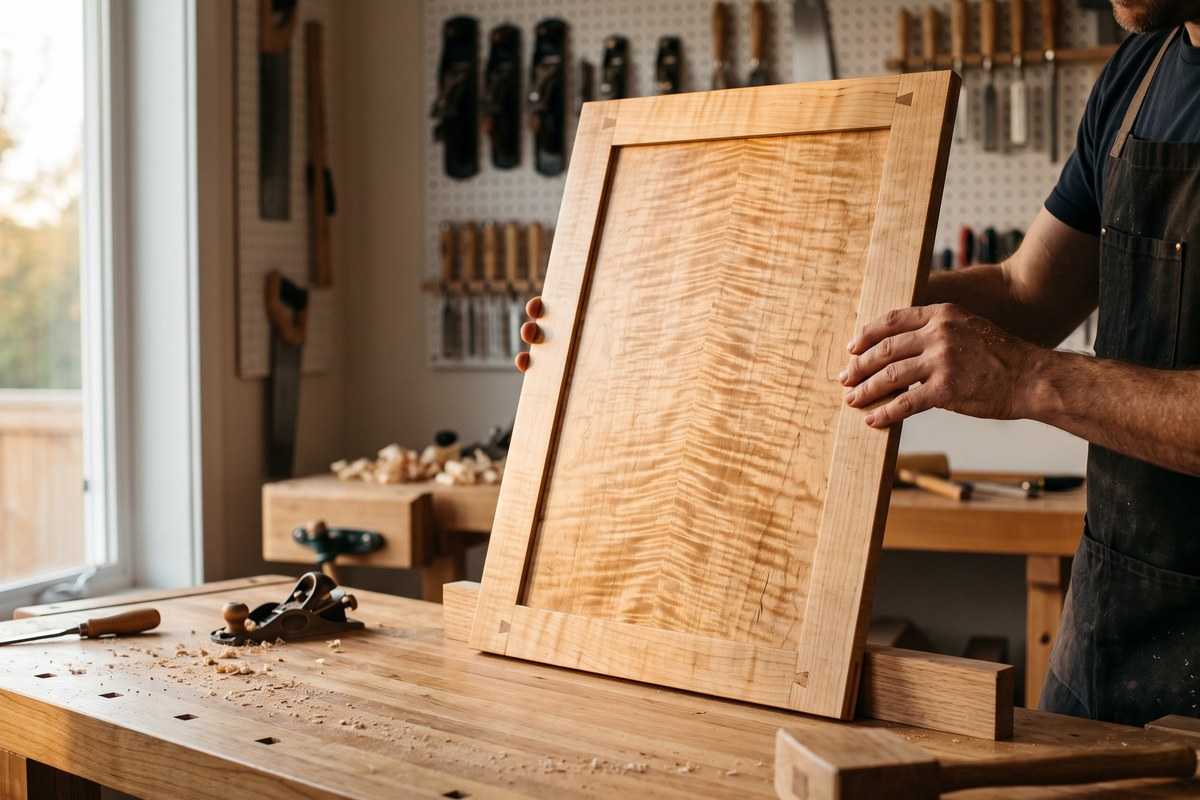

Furniture and Cabinetry

Feature components such as drawer fronts, chair backs, cabinet doors, and table aprons gain depth from curl without making the full piece visually busy. Reserve the strongest figure for focal areas and use plainer maple for hidden rails, web frames, and secondary parts.

Guitars and Violins

Instrument makers use curly maple for violin backs and ribs, electric-guitar tops, necks, headstock veneers, acoustic backs and sides, and drum shells. A guitar soundboard usually calls for another species, and visual intensity must never replace proper grain orientation and seasoning.

Boxes and Turnings

Small boxes and turnings make efficient use of short, narrow figured stock. Turning blanks need sound grain without hidden checks; a spinning void or bark inclusion can open suddenly, so inspect end grain and use appropriate face protection.

Knife and Tool Handles

Hard curly maple resists dents and takes crisp contours in knife scales and tool handles. Keep grain running along the handle, prepare glue faces immediately before bonding, and place pins far enough from ends to reduce splitting.

Veneer and Inlay

Genuine maple veneer spreads premium figure across large, stable panels with less waste than thick solid lumber. Balance a veneered panel with a compatible backer, match consecutive leaves before cutting, and distinguish natural veneer from printed laminate; maple plywood offers another panel option.

Gunstocks and Sporting Goods

Traditional gunstocks may use figured maple, but straight, sound grain through the wrist matters more than dramatic stripes. Reject checks and short grain in loaded areas, and confirm that the blank is properly seasoned before shaping.

Project-Specific Stock Selection

• Choose sugar maple for handles, wear surfaces, and crisp joinery.
• Choose red maple for lighter furniture, boxes, panels, and easier machining.
• Choose bigleaf maple for instrument sets, veneer, and broad decorative figure.
• Use veneer for large panels where solid figured stock would waste material.
• Require straight grain and low defects for narrow or load-bearing parts.

Match stock to stress before judging beauty. A spectacular offcut may suit a box lid yet fail as a chair rail if curl, grain runout, or a small check crosses the narrow section.

Curly Maple Grades and Quality

Curly maple grades describe figure only when the seller defines them that way; no universal 2A–5A scale controls the market. Figure intensity, conventional lumber quality, moisture, color, and dimensions must be reviewed separately.

Figure Grades: 2A–5A

Higher A labels often imply stronger, more consistent curl, with 5A positioned above 2A. One dealer’s 5A board may resemble another dealer’s 3A stock, so compare photographs and published grading definitions rather than treating letters as standardized measurements.

Seller-Specific Grade Names

Master, exhibition, presentation, and select figure are marketing or seller-defined terms. Ask what percentage of each face must carry curl, whether stripe spacing matters, and which defects remain acceptable within that grade.

Lumber Versus Figure Grade

Figure and lumber quality measure different traits. A clear board can have weak curl, while a strongly striped board may contain twist, wane, knots, checks, mineral streaks, or unusable end splits.

Instrument Grade Requirements

Instrument-grade maple should meet the needs of a named component, not a vague premium label. Violin backs, guitar tops, neck blanks, and drum-shell veneer require different dimensions, grain orientation, density, seasoning, and figure patterns.

Figure Coverage and Consistency

Assess full-length coverage, contrast, stripe spacing, and visual direction. Patchy curl may be ideal for small parts if the cut list fits within the strong area, while a wide door panel needs consistent figure across a much larger face.

Color and Defects

Pale uniform color often earns a premium, but mineral streaks and heartwood transitions can work in rustic designs. Check for end splits under surface wax, dark sticker marks, twist, bow, and rough-sawn low spots that reduce final thickness.

Face-to-Face Figure

Two-face figure matters for open shelves, box sides, handles, and resawn matching parts. One-face figure can save money on cabinet doors or veneered panels where the reverse stays hidden, but the listing should state this limitation clearly.

Exact-Board Evaluation

Exact-board photographs provide more value than a category sample. Request dry and wetted views of both faces, opposite viewing angles, end-grain images, a scale reference, actual dimensions, and a moisture reading before buying costly stock.

How to Buy Curly Maple

Buy curly maple by selecting the species, stock form, dimensions, moisture, and figure needed for a defined cut list. Compare delivered usable yield rather than the item price alone, since surfacing, defects, shipping, and figure matching can change the real cost sharply.

Choosing the Maple Species

Choose hard maple where wear and crisp edges matter; choose red or bigleaf maple where easier cutting, lower weight, or instrument-specific qualities matter more. A listing that says only “soft maple” needs clarification because that sales group can include several species; see soft maple for the distinctions.

Rough and Surfaced Lumber

Rough lumber often provides better board-foot value but hides figure and needs milling allowance. S2S means two surfaced faces, S3S adds one prepared edge, and S4S has four surfaced sides; confirm actual dimensions because nominal 3/4-inch stock may finish thinner.

Veneer and Project Blanks

Veneer covers panels efficiently, while turning blanks, knife scales, and instrument sets reduce cutting work for defined projects. Compare usable measurements, grain orientation, and defects rather than relying on labels such as “standard blank”; our turning blanks guide covers blank selection.

Board-Foot Calculation

Board feet equal thickness × width × length in inches ÷ 144. A board measuring 1 × 6 × 48 inches contains 2 board feet; use actual dimensions for surfaced lumber rather than advertised nominal sizes.

Yield and Waste Allowance

Add waste for end checks, defects, milling, tear-out, color matching, and figure placement. A plain-wood cut list may fit three board feet, yet matched figured parts may need four or more because each component must come from visually compatible areas.

Pricing and Delivered Cost

Delivered cost includes the item, shipping, minimum-order fees, surfacing, exact-board selection, and discarded material. Small S4S craft boards often cost far more per board foot than rough lumber because selection, photography, milling, storage, packing, and short-length handling are built into the price.

Photos, Moisture, and Dimensions

Ask how photographs were made because directional light, wetting, camera angle, and image editing can amplify curl. Confirm moisture, actual thickness, width at the narrowest point, usable length between checks, and whether the pictured board is the one being shipped.

Seller Questions and Returns

• What maple species and harvest region are represented?
• Is the photograph of the exact board or a sample?
• Does the stated grade cover figure, lumber quality, or both?
• Is figure visible on one face or both faces?
• What moisture content was measured, and how was it measured?
• Are dimensions actual, nominal, rough, or finished?
• Are bow, twist, checks, wane, and mineral streaks returnable?

Read natural-variation terms before ordering. Many sellers won’t accept a return merely because the curl looks weaker under your room lighting, so save listing images and clarify ambiguous grading language in writing.

Sustainable Sourcing

Request botanical species, harvest region, and chain-of-custody documentation where available. FSC certification can support traceable sourcing, but curl alone says nothing about origin; the Forest Stewardship Council labels explain the principal claim types.

Reduce premium-wood waste by using veneer for large panels and reserving solid figure for fronts, handles, trim, and focal areas. Save clean offcuts for pulls, inlay, jewelry, pens, and small turning pieces.

Craft Boards

Narrow craft boards fit trim, ornaments, small box parts, and inlay without requiring heavy milling equipment. This ten-board bundle lists pieces about 3/4 inch thick, 2 inches wide, and 24 inches long; verify actual dimensions, species, moisture, and whether figure varies among boards.

Wider Project Boards

Wider project stock offers better layouts for drawer fronts, panels, box sides, and furniture accents. This listed board measures about 3/4 × 6 × 36 inches, or 1.125 board feet by nominal dimensions, before accounting for checks, edge defects, or final milling.

Knife Handle Scales

Knife scales need stable moisture, sound grain, clean bonding faces, and enough material for final shaping. Hard maple provides good dent resistance, but inspect both outer faces for matching figure and keep pin holes clear of end checks.

Thin Decorative Stock

Quarter-inch stock suits overlays, inlay, box dividers, laminations, and lightweight craft parts. Thin solid maple still moves across its grain, so don’t glue a wide piece rigidly across an unstable solid-wood substrate.

Surfaced Project Lumber

S4S lumber reduces initial milling but can move after shipping or unpacking. Store this thin 3/8 × 6 × 36-inch board flat with full support, let both faces acclimate, then check thickness, squareness, and bow before laying out parts.
